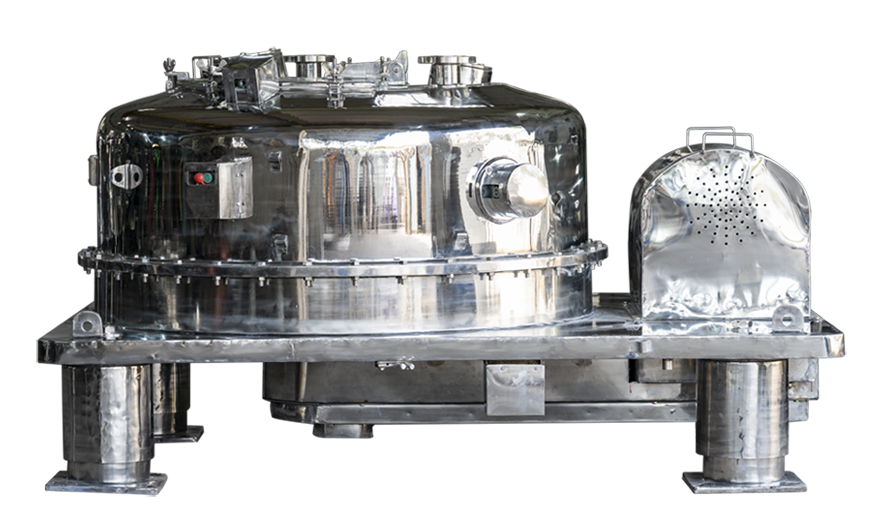

• Top Discharge centrifuge

Top Discharge centrifuge

Ankar Engineers manufacturing products list

  • 12’’ 4 Point SS 316 Top discharge centrifuges / and also trolly mounted
  • 18’’ 4 Point SS 316 Top discharge centrifuges / and also trolly mounted
  • 24’’ 4 Point SS 316 Top discharge centrifuges / and also trolly mounted
  • 36’’ 4 Point SS 316 Top discharge centrifuges
  • 48’’ 4 Point SS 316 Top discharge centrifuges
  • 60’’ 4 Point SS 316 Top discharge centrifuges

Products Technical Information
for manual top discharge centrifuge

Parameters 12" 4P TDC 18" 4P TDC 24" 4P TDC 36" 4P TDC 48" 4P TDC 60" 4P TDC
Basket Diameter MM 300 400 610 915 1210 1524
Basket Depth MM 250 350 405 460 500 550
Diameter of lip of basket MM 300 450 330 600 800 1000
Volume under lip of Basket LTS 10 15 55 180 275 LTS 519
Max pemissable load of basket KGS 10 15 65 195 275 519
Max Revolutions RPM 1440 1440 900 900 900 800
Centrifugal force Units 500 550 490 510 450 G 543 G
Filteration area M2 0.24m2 0.362 0.62 1.32 1.94m2 2.39m2
Motor power HP 0.5 1.5 3 7.5 15 HP 20 HP
Over all dimension of the machine
Length over the motor MM 900 2100 2500
Width MM 750 1500 1800
Operating height MM 1200 1800 2200
Weight of the machine KGS 250 4500 5500

Optional Accessories

  • Zero speed inter locking systems
  • Antivibration tripper
  • Proximity sensor

Advantages

  • Easy and quick cake discharge.
  • Maximum use of Basket capacity.
  • Cake handing loss negligible.
  • Most suitable for Hard Cake.
  • Scraping of cake not required.
  • Uniform washing of cake.
  • Less manual labour involved.
  • Instant top discharge means the filter bag is lifted by lifting arrangement along with the top easy detachable ring and the cake is discharged through the centre of the bag.

Manufacturing facilities

We will make the machining parts on lathe machines , drilling machines and milling machines with experience turners and workers

Downloads

36" 4m Point top dischqarge centrifuge

48" 4 Point manual top discharge centrifuge

60" 4 Point top discharge cgmp
